| Warranty Time | 1 year or 1000 hours, which one comes first |
| Delivery Port | Shanghai or any China port |
| Leading Time | 15 working days |
| Trade Termes | FOB/CIF |
| Payement termes | T/T, L/C |

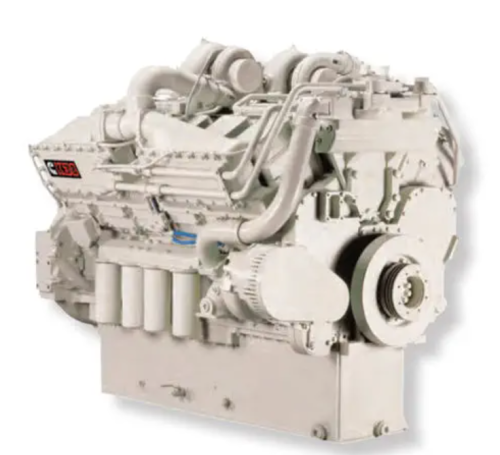

| Engine Model | KT38-M600 |
| Rated Power | 448 kW/600HP |
| Rated Speed | 1800RPM |
| Engine Type | 12 Cylinders, V Type |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 37.8 L |
| Compression Ratio | 15:1 |
| Peak Torque | 2612 N.m @ 1500 rpm |
| Fuel Consumption | 116 L/hr |
| Aspiration Type | Turbocharged |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | Cummins PT Pump |
| Governor Method | Mechanical Governor |
| Packing Weight | 4300kg |
| Dimension |
2700mm*1550mm*2200mm |
| Engine Model | KT38-M780 |
| Rated Power | 582 kW/780HP |
| Rated Speed | 1800RPM |
| Engine Type | 12 Cylinders, V Type |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 37.8 L |
| Compression Ratio | 15.5:1 |
| Fuel Consumption | 142 L/hr |
| Aspiration Type | Turbocharged |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | Cummins PT Pump |
| Governor Method | Mechanical Governor |
| Packing Weight | 4700KG |
| Dimension |
2700mm*1550mm*2200mm |
| Engine Model | KTA38-M800 |
| Rated Power | 596kW/800HP |
| Rated Speed | 1800RPM |
| Engine Type | 12 Cylinders, V Type |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 37.8 L |
| Compression Ratio | 13.9:1 |
| Fuel Consumption | 147 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | Cummins PT Pump |
| Governor Method | Mechanical Governor |
| Packing Weight | 4700KG |
| Dimension |
2700mm*1550mm*2200mm |
| Engine Model | KTA38-M1-900HP |
| Rated Power | 671 kW/900HP |
| Rated Speed | 1600RPM |
| Engine Type | 12 Cylinders, V Type |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 37.8 L |
| Compression Ratio | 15.5:1 |
| Fuel Consumption | 166L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | Cummins PT Pump |
| Governor Method | Mechanical Governor |
| Packing Weight | 4700KG |
| Dimension |
2700mm*1550mm*2200mm |
| Engine Model | KTA38-M1-900HP |
| Rated Power | 671 kW/900HP |
| Rated Speed | 1600RPM |
| Engine Type | 12 Cylinders, V Type |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 37.8 L |
| Compression Ratio | 15.5:1 |
| Fuel Consumption | 166L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | Cummins PT Pump |
| Governor Method | Mechanical Governor |
| Packing Weight | 4700KG |
| Dimension |
2700mm*1550mm*2200mm |
| Engine Model | KTA38-M1-1000HP |
| Rated Power | 746kW/1000HP |
| Rated Speed | 1800RPM |
| Engine Type | 12 Cylinders, V Type |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 37.8 L |
| Compression Ratio | 13.9:1 |
| Fuel Consumption | 126.8L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | Cummins PT Pump |
| Governor Method | Mechanical Governor |
| Packing Weight | 4700KG |
| Dimension |
2700mm*1550mm*2200mm |
| Engine Model | KTA38-M2-1200HP |
| Rated Power | 895kW/1200HP |
| Rated Speed | 1800RPM |
| Engine Type | 12 Cylinders, V Type |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 37.8 L |
| Compression Ratio | 13.9:1 |
| Fuel Consumption | 224 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | Cummins PT Pump |
| Governor Method | Mechanical Governor |
| Packing Weight | 4700KG |
| Dimension |
2700mm*1550mm*2200mm |
| Engine Model | KTA38-M2-1300HP |
| Rated Power | 969kW/1300HP |
| Rated Speed | 1800RPM |
| Engine Type | 12 Cylinders, V Type |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 37.8 L |
| Compression Ratio | 13.9:1 |
| Fuel Consumption | 235 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | Cummins PT Pump |
| Governor Method | Mechanical Governor |
| Packing Weight | 4700KG |
| Dimension |
2700mm*1550mm*2200mm |
